Product Description

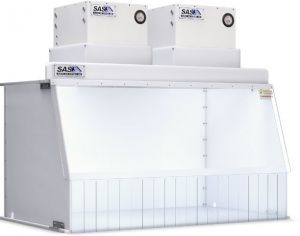

The 42 in. Wide Portable Clean Room Hood offers up to an ISO Class 5 cleanroom to help protect the process from outside contamination and particulate. This system utilizes a horizontal laminar airflow pattern and a dual-stage filtration to create positive-pressure environment by supplying filtered air to the workspace. The Portable Clean Room Hood draws in ambient air and processes the air through a pre-filter and main filter. Main filter choices include HEPA filtration (up to 99.97% efficiency on particles down to 0.3 microns) and ULPA filtration (up to 99.9995% efficiency on particles down to 0.12 microns).
This unit's compact size and portable nature also make it a good choice for field-testing applications that require frequent travel. To manage the air volume, this unit comes standard with a variable speed controller. Also included is a LED light with an optional UVC light for surface disinfection.
Benefits of a Portable Cleanroom
~ ISO class 5, sterile environment (medical grade)
~ Free-standing, modularity
~ Minimal maintenance
~ Modifications, customization available
~ Compliance with government regulations
~ Controlled environment to remove outside tampering
~ No exterior ducting or venting required. These are "Stand Alone" units
~ Easy no tool maintenance
SPECIFICATIONS:
Hood Dimensions:
- O.D: 24 in.D x 42 in.W x 25 in.H
- I.D: 23.5 in.D x 40 in.W x 24 in.H
Hood Material:
- Sides: .250 in. White Acrylic
- Base: .500 in. White High Density Polyethylene
- Top: .500 in. Clear Polycarbonate
Front Windows: 0.250 in. Clear Polycarbonate
Blower Dimensions: 13 in. L x 13 in. W x 14.5 in. H
Air Volume (approximately): Up to 700 CFM (with HEPA filter media)
Offers reliable and low maintenance operation for a variety of applications including IV infusion, parts inspection, optics/laser assembly, tissue culturing, data recovery, stem cell therapy practices and other medical applications.
Typically used in laboratory, medical, biological, electronics, food and beverage, and scientific applications and offers the ability to be more modular, and mobile than a typical cleanroom where a full room is converted into a controlled environment.
***NOT INTENDED FOR CHEMOTHERAPY***
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Sentry Air SS-340-PCR-C Horizontal Laminar Flow Clean Bench or copy the following into your browser address window: labequip.ca/stock/pictures/n2263.pdf
Made in USA.
ACCESSORIES:
COMES COMPLETE WITH:
anti-static vinyl curtains
LED light
variable speed controller
OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
Supporting base
UVC light
Magnehelic Gauge
hour counter
removable spill tray
