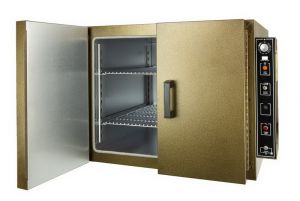

Product Description
This series provides large bench or portable capacity.
Although there are several different models and styles, all of the bench series ovens offer fan-forced air circulation, aluminized interiors, gasketed doors, adjustable 80-lb capacity shelves, high/low heat switch, rapid run-up and recovery times, and a 6-foot cord with plug.
All ovens are fully tested prior to shipment. These ovens are perfect for: preheating, thermal testing, self-batch processing, part drying, curing, baking, evaporating or dehydrating various media and soil aggregate, as well as many other applications. All units feature large work spaces and excellent portability.
Capacity: 7.0 Cubic Feet
Temperature Range: Ambient +25 F Min. To 232°C (450°F)
Shelves (1.5 in. Centers):
~ Maximum Per Unit: 11
~ Maximum Pounds / Shelf: 80
Control Stability:
@ 100°C: ±2.0/0.5 C
@ 200°C: ±2.5/0.5 C
Uniformity:
@ 100°C: ±2.5/2.0 C
@ 200°C: ±3.5/3.0 C
Air Changes Max / Hour: 8 To 12
Max Chamber Air Velocity: 7ft/Sec
Quincy offers a variety of optional items for your specific needs, including access holes in 3 sizes, a storage cabinet or stand designed to fit the oven footprint, a high-limit analog or digital control backup, timers, a 10 in. circular chart recorder, an insulated door window, a chamber light, and an exhaust chamber adaptor to connect to a 3 in. vent. Please inquire details for details and costs.
***Available with a stainless steel interior for additional cost. Please request details and pricing.***
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Quincy Analog 21-350 Forced-air Oven or copy the following into your browser address window: labequip.ca/stock/pictures/n1552.pdf
Made in USA.
ACCESSORIES:
OPTIONAL ACCESSORIES AT ADDITIONAL COST:
additional shelves
access holes
storage cabinet or stand
high-limit analog or digital control backup
timers
10 in. circular chart recorder
an insulated door window
chamber light
exhaust chamber adaptor to connect to a 3 in. vent
