Product Description

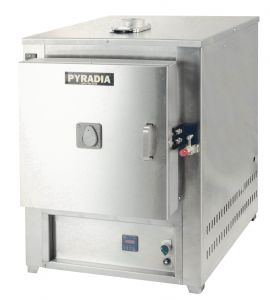

This new 3 cu.ft furnace heats to a temperature of 1100°C. Pyradia's tabletop furnaces integrate quality components and superior workmanship, for maximum performance in a variety of industrial or laboratory applications. Heavy duty construction - rugged furnace design incorporates quality hardware to a heavy gauge casing, for increased durability in all type of processes. The highest quality low-density refractory bricks used in the construction of its chamber assure maximum insulation while minimizing heating or cooling cycles. The specially designed grooved bricks optimize heat transfer and fully support the FeCrAl heating elements for maximum life expectancy. Pyradia tabletop furnaces are equipped with state of the art ramp to set point digital microprocessor temperature controller with auto tuning PID parameter offering ramp/soak program capability. Heavily hinged door with a 180 degree opening. Maximum continuous temperature of 2000F/1100C (intermittent maximum temp is 2300F/1260C). Enamel coated exterior.
Made in Canada.
ACCESSORIES:
COMES COMPLETE WITH:
~ Door safety switch, elements are switched off when the door is opened
~ High limit safety
~ Solid-state relay, For increased element life, temperature accuracy and silent operation
~ Enamel coated, 16 gauge steel casing
~ Watlow PM6 single setpoint controller
~ Heavily hinged door, with 180o opening
~ 4.5" Low-density, high-quality, refractory bricks insulation
~ Open coil FeCrAl heating elements
~ Smooth surface cordierite hearth plate
OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
~ NiCr heating elements; for use in corrosive environments
~ Vertical guillotine door counterbalanced for "zero weight" positioning
~ Stainless steel finish
~ Adjustable Exhaust vent and peephole
~ Programmable controller that can manage up to four different recipes, with up to ten ramp/soak segments each. This option also includes a USB port to facilitates programming
~ Heavy-duty floor stand brings the furnace to the perfect working height
~ Corrugated cordierite hearth plate
~ 7 day timer
~ Inert atmosphere package
~ 3 phase, 208-230V available
PROUDLY CANADIAN - We Ship Worldwide
