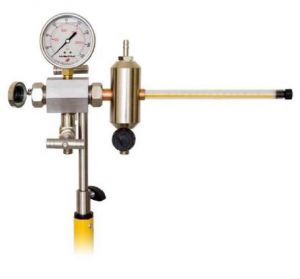

Koehler Instrument K32240 Dew Point Apparatus

Product Description
Determines the water vapor content of gaseous fuels by measurement of the dew point temperature, followed by calculation of the water vapor content.

Features and Benefits:
~ Rugged construction
~ Stainless steel sample chamber with incorporated 'target mirror'

The Dew Point Apparatus consists of a closed stainless steel dew point chamber containing a highly polished stainless steel 'target mirror' and sample inlet and outlet control valves. The chamber is chilled by refrigerant following through the outer cooling jacket, preventing any refrigerant contact with the test sample. The thermometer is inserted into the mirror support structure, providing the temperature of the 'target mirror.' As the sample flows in the chamber and is deflected across the surface of the mirror, the temperature at which condensation collects on the mirror is recorded as the dew point of the sample.

Includes:
~ Cooling Chamber with 1/4 in. gas needle valve
~ Stainless Steel Block with 1/4 in. gas needle valve
~ Viewing Miirror
~ Thermometer Guard
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K32240 Dew Point Apparatus or copy the following into your browser address window: labequip.ca/stock/pictures/n1385.pdf
Made in USA.

ACCESSORIES:

Comes complete with:
Cooling Chamber with 1/4" gas needle valve
Stainless Steel Block with 1/4" gas needle valve
Viewing Mirror
Thermometer Guard

Optional accessories available at additional cost:
K32240-1 S/S Hose and CO2 Tank Adapter Kit Required for connecting apparatus to coolant source
K32240-2 Quick Disconnect Kit Required for use with K32240-1
K32240-3 Bench Top Stand
K32240-20 Pressure Gauge, 0 to 30 psi, Liquid Filled
250-000-33C ASTM 33C Thermometer
250-000-114C ASTM 114C Thermometer
ASTM Standard Test Method D1142
K32240-4 Tripod Support Assembly
K32240-5 Carrying Case
K32240-21 Pressure Gauge, 0 to 30 psi
K32240-22 Pressure Gauge, 0 to 60 psi, Liquid Filled
K32240-23 Pressure Gauge, 0 to 60 psi
K32240-24 Pressure Gauge, 0 to 300 psi,Liquid Filled
K32240-25 Pressure Gauge, 0 to 300 psi
K32240-26 Pressure Gauge, 0 to 600 psi,Liquid Filled
K32240-27 Pressure Gauge, 0 to 600 psi
K32240-28 Pressure Gauge, 0 to 1000psi,Liquid Filled
K32240-29 Pressure Gauge, 0 to 1000psi
K32240-30 Pressure Gauge, 0 to 2000psi,Liquid Filled
K32240-31 Pressure Gauge, 0 to 2000psi
K32240-32 Pressure Gauge, 0 to 3000psi,Liquid Filled
K32240-33 Pressure Gauge, 0 to 3000 psi

---
