Product Description
Density and relative density measurements of light hydrocarbons, including LPG, are used for transportation, storage and regulatory purposes. The measurement is made by floating a thermohydrometer in a sample that has been introduced into a pressure cylinder.
Features and Benefits:
~ Conforms to ASTM D1657 and related specifications
~ Mechanically refrigerated for convenient sub-ambient temperature operation
Immerses two Pressure Hydrometer Cylinders at 60°F (15°C) for density and relative density determinations of LPG and other light hydrocarbons. Mechanically refrigerated cooling system maintains sub-ambient temperature. Thermistor activated solid state temperature controller and 750W copper immersion heater maintain bath temperature with ±0.5°F (±0.2°C) stability. A 1/20 hp ball bearing stirrer circulates the bath medium to assure temperature uniformity. Stainless steel tank is fiberglass insulated. Equipped with overflow standpipe/drain. Steel exterior has a durable polyurethane enamel finish.
Controller Sensitivity: ±0.5°F (±0.2°C)
Capacity: Two (2) K26150 cylinders

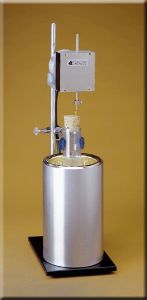

Pressure Hydrometer Cylinder - Transparent plastic cylinder mounted between machined aluminum end plates and surrounded by stainless steel safety guard. Use together with ASTM 310H Thermohydrometer to determine density or relative density of LPG and light hydrocarbons. Equipped with inlet, outlet and vapor vent valves for admitting sample and purging cylinder. End plates have positive sealing buna-N O-rings and are joined by sturdy steel support rods. Top plate detaches easily without tools for insertion or removal of thermohydrometer. Safety relief valve prevents unsafe pressure build-up inside cylinder. Mounted on a finished steel base.
Constant Temperature Water Bath - Immerses two Pressure Hydrometer Cylinders at 60°F (15°C) for density and relative density determinations of LPG and other light hydrocarbons. Mechanically refrigerated cooling system maintains sub-ambient temperature. Thermistor activated solid state temperature controller and 750W copper immersion heater maintain bath temperature with ±0.5°F (±0.2°C) stability. A 1/20 hp ball bearing stirrer circulates the bath medium to assure temperature uniformity. Stainless steel tank is fiberglass insulated. Equipped with overflow standpipe/drain. Steel exterior has a durable polyurethane enamel finish.
Conforms to the specifications of: ASTM D1657; IP 235; ISO 3993
Controller Sensitivity: ±0.5°F (±0.2°C)
Capacity: Two (2) K26150 cylinders
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K25900 / K25995 Hydrometer Bath or copy the following into your browser address window: labequip.ca/stock/pictures/n1185.pdf
Made in USA.
ACCESSORIES:
OPTIONAL ACCESSORIES AT ADDITIONAL COST:
K26150 Pressure Hydrometer Cylinder
251-000-001 ASTM 101H Thermohydrometer
___ Nominal Relative Density Range: 0.500 to 0.650
___ Standard Temperature, °F: 60/60
___ Temperature Range, °F: 30 to 90
251-000-004 ASTM 310H Thermohydrometer
___ Density Range kg/m3: 500-650
___ Standard Temperature, °C: 15
___ Temperature Range, °C: 0 to 35
250-000-12F ASTM 12F Thermometer. Range -5 to +215°F
250-000-12C ASTM 12C Thermometer.Range -20 to +102°C
