Product Description

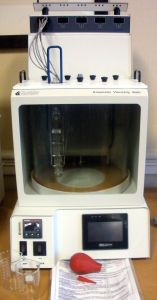

The Koehler KV5000 series kinematic viscosity baths with the optical flow detection system provides automatic viscosity measurements of petroleum and petrochemical products. Includes communication and power ports for each optical detection assembly, and can utilize up to five optical assemblies. Two additional positions are available for manual viscosity measurements, and all positions can be used in the manual mode. The interchangeable Ubbelohde, Cannon Fenske, and Reverse Flow viscometer tubes are quickly installed and removed from the detection assemblies for cleaning and simple tube changes. Allows automatic viscosity measurements and results calculation without an external PC. Motorized stirrer provides complete circulation without turbulence. Microprocessor PID circuitry assures precise, reliable temperature control within ASTM specified tolerances throughout the operating range. Simple push-button controls and dual digital displays permit easy setting and monitoring of temperature. Two place calibration offset capability is provided. Built-in cooling coil facilitates temperature control at ambient or below ambient temperatures.
Viscosity Software
Software automatically downloads test data and calculates final test results from sample efflux times. Also included is a database for storing test data, determining test averages, standard deviations, and ASTM test repeatability as well as providing a method for tracking both instrument and viscometer tube calibrations.
~ Complete instrument and data acquisition system exclusively designed for conducting D445, IP71 and related test methods
~ Optical sensor detection system accurately measures sample flow and automatically calculates kinematic viscosity results
~ Powerful software system for PC platforms operating in Windows98 SE, 2000, NT, ME, and XP environments
~ Option wireless data acquisition package available
~ Automatic calculation and display of results in viscosity units or seconds
~ Accommodates Ubbelohde, Cannon Fenske, and Reverse Flow viscometers
~ High accuracy temperature control with dual digital displays show setpoint and actual bath temperature with selectable scale (°C or °F)
~ Stand alone feature provides for automated testing without an external PC
~ Integrated redundant overtemperature and low liquid level cut-off circuitry
~ Software exports test data with graphs and test parameters direct to Microsoft Excel or in ASCII file format for use with LIMS or any other spreadsheet program
~ Integrated digital timing for easy measurement of sample efflux times
Temperature range: Ambient to 150°C (302°F); sub-ambient to 10°C with external cooling
Temperature display: digital with 0.1 °C/°F resolution, calibrate to 0.01 °C/°F
Temperature control accuracy and uniformity: Exceeds ASTM requirements
*** THIS PRICE IS FOR THE 12 in. BATH. AN 18 in. BATH IS ALSO AVAILABLE AT ADDITIONAL COST ***
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K23702-OS / K23792-OS (KV5000) Viscosity Bath or copy the following into your browser address window: labequip.ca/stock/pictures/n876.pdf
Made in USA.
ACCESSORIES:
COMES COMPLETE WITH:
Test Port covers (7)
OPTIONAL ACCESSORIES AT ADDITIONAL COST:
378-025-C01 thru 378-700-C01 Cannon-Fenske Viscometer Tubes, Size 25 thru 700
378-025-C02 thru 378-700-C02 Cannon-Fenske Opaque Reverse Flow Viscometer Tubes, Size 25 thru 700
378-000-C03 thru 378-005-C03 Ubbelohde Viscometer Tubes, Size 0 thru 5
K23377-01000 Cooling Coil Assembly
K22090 Withdrawal Bulb
K23311 Rubber Stopper for Viscometer Tube, pk/12
K23350 Universal Viscometer Holder, Rectangle
K23351 Universal Viscometer Holder, Round
K23363 Modified Koppers Viscometer Holder, Round
K23381 Cannon-Fenske Routine Viscometer Holder, Round
K23382 Ubbelohde Viscometer Holder, Round
K23383 Cross-Arm Viscometer Holder, Round
K23384 Cannon-Ubbelohde Semi-Micro Viscometer Holder, Round
K23387 BS/IP/RF U-Tube Viscometer Holder, Round
K23462 Digital Stopwatch
355-001-001 White Mineral Oil, 1 Gallon
355-001-003 White Mineral Oil, 5 Gallon
250-000-120C ASTM 120C Thermometer, 40 °C Test Temperature
250-000-121C ASTM 121C Thermometer, 100 °C Test Temperature
