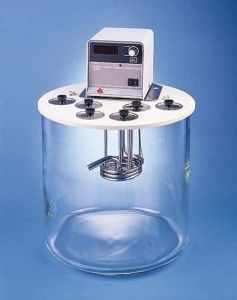

Koehler Instrument K23376 / K23377 (KV1000) Viscosity Bath

Product Description
Constant temperature bath for kinematic viscosity testing of petroleum products. Accommodates six round 2 in. (51mm) diameter viscometer holders. Bath temperature stabilizes within +/-0.5C (+/-1F) of setting, and final adjustment to within +/-0.01C (+/-0.02F) can be made. Test temperatures of up to 150C (302F) can be selected. Temperature limit control permits the operator to select an overtemperature cutoff point to protect against accidental overheating. Control unit includes immersion heater, circulating stirrer and temperature probe. Composition top plate rests on a 12x12 in. (30.5x30.5cm) or 12x18 in. (30.5x46cm) Pyrex jar. You must order capillary viscometers, viscometer holders and thermometer separately. Capacity: Six (6) glass capillary viscometers. Bath Medium (22L): water or white technical oil. Includes 6 stainless steel port covers.

Specifications
Capacity: Six (6) glass capillary viscometers
Bath Medium: water or white technical oil
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K23376 / K23377 (KV1000) Viscosity Bath or copy the following into your browser address window: labequip.ca/stock/pictures/n668.pdf
Made in USA.

ACCESSORIES:

COMES COMPLETE WITH:
Port Covers, stainless steel (6)

OPTIONAL ACCESSORIES AT ADDITIONAL COST:
378-025-C01 thru 378-700-C01 Cannon-Fenske Viscometer Tubes, Size 25 thru 700
378-025-C02 thru 378-700-C02 Cannon-Fenske Opaque Reverse Flow Viscometer Tubes, Size 25 thru 700
378-000-C03 thru 378-005-C03 Ubbelohde Viscometer Tubes, Size 0 thru 5
K23377-01000 Cooling Coil Assembly
K22090 Withdrawal Bulb
K23311 Rubber Stopper for Viscometer Tube, pk/12
K23350 Universal Viscometer Holder, Rectangle
K23351 Universal Viscometer Holder, Round
K23363 Modified Koppers Viscometer Holder, Round
K23381 Cannon-Fenske Routine Viscometer Holder, Round
K23382 Ubbelohde Viscometer Holder, Round
K23383 Cross-Arm Viscometer Holder, Round
K23384 Cannon-Ubbelohde Semi-Micro Viscometer Holder, Round
K23387 BS/IP/RF U-Tube Viscometer Holder, Round
K23462 Digital Stopwatch
355-001-001 White Mineral Oil, 1 Gallon
355-001-003 White Mineral Oil, 5 Gallon
250-000-120C ASTM 120C Thermometer, 40 °C Test Temperature
250-000-121C ASTM 121C Thermometer, 100 °C Test Temperature

---
