Product Description

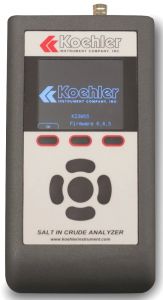

Salts in Crude Analyzer & Isolated Conductivity, pH and Temperature Measurement.
Electrometric Salt Determinator
. Measures salt content, conductivity, and temperature of crude oil samples, and pH measurements of aqueous samples
. Measures salt concentration in the range of 0 to 150 PTB (lb/1000 bbl)
. Portable for field or laboratory testing with a LiPo battery
. Data storage up to 12 test results
Determines the salt content, conductivity, and temperature of crude oil samples, according to ASTM D3230 specifications. Utilizes low-voltage, synchronous detection technology for conductivity measurements and a high-accuracy thermistor array to measure sample temperature. Automatically calculates salt concentration directly from acquired temperature and conductivity values. Self-calibration feature allows operator to adjust for any drift without re-entering standard temperature curves. Easy-to-read 2.6" TFT-LCD display shows up to four of the following parameters at one time as chosen by the operator: salts, conductivity, conductivity @25°C, pH, pH millivolts, temperature (°C or °F), battery level, date, time, and indicator.
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K23065 Salt-in-Crude Petroleum Analyzer or copy the following into your browser address window: labequip.ca/stock/pictures/n2177.pdf
Made in USA.
ACCESSORIES:
COMES COMPLETE WITH:
100 mL Beaker
Carrying Case
Electrode Cap Assembly
Temperature Probe & Wire Assembly
Dual Power Adapter
Calibration Jack
OPTIONAL ACCESSORIES AVAIABLE AT ADDITIONAL COST:
332-002-017 100 mL Borosilicate Beaker
465-005-004 Cable, 5-Pin, Male, 1 Meter
K23000-CASE Salt in Crude Case
K23065-1 Electrode Cap Assembly
K23060-4 Dual Power Adapter 115/230V
K23060-6 Calibration Jacks
K23060-8 Benchtop Stand
K23050-9 Mixed Salts Solution, 100 mL
K23050-10 Mixed Salts Solution, 500 mL
