Product Description

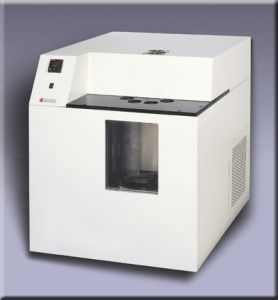

LKV4000 Digital Refrigerated Constant Temperature Kinematic Viscosity Bath
Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.
Features and Benefits
~ Improved design with enhanced performance and safety features
~ Extended range -70C (-94F) LKV4000 model
~ Microprocessor PID temperature control with two decimal calibration offset
~ Dual digital displays show setpoint and actual bath temperature
~ Selectable temperature scale - Fahrenheit or Celsius
New refrigerated constant temperature bath series with improvements in operating features, safety and cabinetry. Advanced temperature control circuitry includes microprocessor PID design and two decimal calibration offset. Simple push-button controls and dual digital displays permit easy setting and monitoring of bath temperature. Baths accommodate four glass capillary viscometers using 2 in. (51mm) round holders (rectangular ports are available on special order). Bath medium is contained in a clear, evacuated Dewar flask, and glare-free fluorescent backlighting provides excellent visibility when working with the viscometers.
Extended range LKV4000 model operates at temperatures as low as -70C (-94F). Exceeds ASTM temperature control accuracy and uniformity requirements throughout the operating range. Air-cooled hermetic compressors provide efficient operation with the use of CFC free refrigerants.
Bath Construction and Safety Features - Insulated steel cabinet has an attractive polyester-epoxy finish and is mounted on adjustable leveling feet. Chemical resistant working (top) surface has four round ports for 2 in. (51mm) viscometer holders and one port for a thermometer holder. Front viewing window provides clear, distortion-free visibility. Microprocessor controller incorporates circuitry that interrupts power to the heater in the event of an over-temperature condition or disconnection of the primary probe. A redundant adjustable controller and sensor probe provide added over-temperature protection, and an integrated low liquid level sensor removes power to the heaters if the bath liquid is not filled to the proper level or falls below during operation. Both over-temperature and low liquid level circuits will latch and prevent further operation of the bath until the fault is removed.
LKV5000 Refrigerated Constant Temperature Bath with Optical Detection - Koehler LKV5000 series kinematic viscosity baths with the optical flow
detection system provides automatic viscosity measurements of petroleum and petrochemical products. Includes communication and power ports for each optical detection assembly, and can utilize up to four optical assemblies. REQUEST PRICING
Optical sensors and viscometer tubes to be ordered separately
Specifications:
Testing Capacity: Four (4) glass capillary viscometers
Viscometer Ports: Four (4) round 2 in. (51 mm) ports
Bath Dimensions: 9.5 in. dia x 12 in. deep (24x30cm)
Bath Capacity: 3.7 gal (14 L)
Temperature Control:
Display: 0.1C/F resolution, calaibrate to 0.01C/0.01F
Control accuracy and uniformity: Exceeds ASTM requirements throughout the operating range
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K22751 / K22752 Low Temperature Viscosity Bath or copy the following into your browser address window: labequip.ca/stock/pictures/n1208.pdf
Made in USA.
ACCESSORIES:
COMES COMPLETE WITH:
Port Cover, Delrin (4)
Thermometer Holder
OPTIONAL ACCESSORIES AT ADDITIONAL COST:
378-025-C01 thru 378-700-C01 Cannon-Fenske Viscometer Tubes, Size 25 thru 700
378-025-C02 thru 378-700-C02 Cannon-Fenske Opaque Reverse Flow Viscometer Tubes, Size 25 thru 700
378-000-C03 thru 378-005-C03 Ubbelohde Viscometer Tubes, Size 0 thru 5
K23700-SFW-A Kinematic Viscosity Software K22090 Withdrawal Bulb
K23311 Rubber Stopper for Viscometer Tube, pk/12
K23350 Universal Viscometer Holder, Rectangle
K23351 Universal Viscometer Holder, Round
K23363 Modified Koppers Viscometer Holder, Round
K23381 Cannon-Fenske Routine Viscometer Holder, Round
K23382 Ubbelohde Viscometer Holder, Round
K23383 Cross-Arm Viscometer Holder, Round
K23384 Cannon-Ubbelohde Semi-Micro Viscometer Holder, Round
K23387 BS/IP/RF U-Tube Viscometer Holder, Round
355-001-001 White Mineral Oil, 1 Gallon
355-001-003 White Mineral Oil, 5 Gallon
250-000-120C ASTM 120C Thermometer, 40C Test Temperature
250-000-121C ASTM 121C Thermometer, 100C Test Temperature
