Product Description

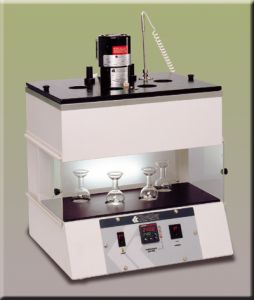

The Koehler K21410 SV3000 (K21410) saybolt viscosity bath is a constant temperature bath and is used to determine the time required for 60mL of sample to flow through a calibrated orifice under precisely controlled conditions. Saybolt Universal Seconds (SUS) is the standard measurement for lubricants, insulating oils, and lighter fuel grades, and Saybolt Furol Seconds (SFS) is used for heavier oils and bitumens. Insulated bath interior is constructed entirely of heavy gauge stainless steel. A built-in overflow pipe and drain valve simplifies filling of the bath fluid to the proper level. Chemical resistant top plate provides excellent insulation and is easily removed to allow for cleaning of the bath interior. A cooling coil for tap water or refrigerated coolant is provided for operation at near-ambient temperatures. Steel cabinet has leveling feet and a chemical-resistant polyurethane-epoxy finish. Microprocessor PID circuitry assures precise temperature control within ASTM specified tolerances throughout the operating range of the bath. Simple push-button controls and dual digital displays permit easy setting and monitoring of bath temperature. Two place calibration offset is provided. Accommodates four viscometers and four 60mL receiving flasks. Sliding draft shields and a chemical-resistant alignment plate facilitate handling of the flasks, and glare-free fluorescent backlighting is provided for easy viewing of the samples. Communications software (RS232, etc.) ramp-to-set, and other enhanced features are available at additional cost.
Features and Benefits
~ Microprocessor control of temperature between ambient and 240C (464F)
~ Four tube capacity
~ Dual digital displays show setpoint and actual temperature
~ Selectable temperature scale - Fahrenheit or Celsius
~ Bath Capacity: 5 gal (19L)
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K21410/K21420 (SV3000) Saybolt Viscosity Bath or copy the following into your browser address window: labequip.ca/stock/pictures/n650.pdf
Made in USA.
ACCESSORIES:
COMES COMPLETE WITH:
Thermometer Supports (4)
Oil Strainer
Tube Nut Wrench
Port Closures (2)
Cleaning Plunger
Chained Corks (4)
Withdrawal Tube
Orifice Wrench
Port Covers (4)
OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
K22009 Saybolt Viscometer Tube, Brass
K22309 Saybolt Viscometer Tube, Stainless Steel
K22010 Saybolt Universal Orifice
K22010-C/F Saybolt Universal Orifice with Cal Cert
K22020 Furol Orifice
K22020-C/F Sayblt Furol Orifice with Cal Cert
K22029 Kansas Road Oil Orifice
332-003-003 Borosilicate Glass Receiving Flask, 60ml
K22030 Orifice Wrench for Universal & Furol Orifices
K22039 Orifice Wrench for Kansas Road Oil Orifice
K22050 Socket Wrench
K22060 Oil Strainer
K22070 Cleaning Plunger
K22080 Displacement Ring
K22090 Withdrawal Tube
K22011 Thermometer Support
355-001-001 White Technical Oil, 1 Gallon Container
355-001-002 Silicone Heat Transfer Fluid, 1 Gallon Container
355-001-003 White Technical Oil, 5 Gallon Container
355-001-004 Silicone Heat Transfer Fluid, 5 Gallon Container
250-000-17F ASTM 17F Thermometer
250-000-17C ASTM 17C Thermometer
