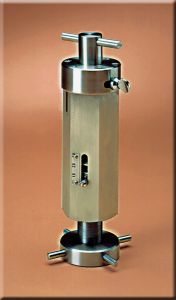

Koehler Instrument K19300 Deleterious Particles Determination Apparatus

Product Description
Detects and estimates deleterious particle contamination in lubricating greases and other semi-solids and heavy liquids. Grease fillers can be tested for abrasive contaminants by first mixing them into petroleum or grease known to be free of deleterious particles.

Complete apparatus per Figure 1 and 2 of ASTM D1404. Rotates plastic plate 30° against stationary plate while applying 200psi pressure. Includes body, test plate holders, loading screw, calibrated spring with scale for applying test load and removable cap assembly with milled slot and handle for rotating test plates. Constructed of stainless steel. Order plastic test plates separately.
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K19300 Deleterious Particles Determination Apparatus or copy the following into your browser address window: labequip.ca/stock/pictures/n1190.pdf
Made in USA.

ACCESSORIES:

Optional accessories avaiblale at additional cost:
K19310 Plastic Test Plate

---
