Product Description

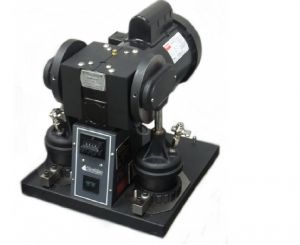

Mechanical Grease Workers - For 'worked penetration' and 'prolonged worked penetration' tests to determine consistency of lubricating greases. This grease worker consists of single or dual steel ASTM grease workers mounted on a sturdy base and driven by a powerful gear reduction motor and meets ASTM specifications for stroke length and rate. It is also equipped with a presetting electronic counter that automatically shuts off the drive motor after any desired number of strokes up to 99,999. Steel grease workers have threaded cup and cover, and steel plunger plate with shaft and handle that connects to eccentric cam on drive unit. Accessory dial thermometer inserts in plated vent cock. Spring loaded tightening clamps hold grease workers securely on base, and steel pins in base facilitate disassembly of grease workers after testing.
FTM 791-313* (* requires substitution of 270-hole grease worker - K18030)
Drive Motor: fan cooled gear reduction type, ½hp.
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K18190 / K18191 Automatic Dual Grease Worker or copy the following into your browser address window: labequip.ca/stock/pictures/n877.pdf
Made in USA.
ACCESSORIES:
COMES COMPLETE WITH:
Mechanical ASTM Steel Grease Worker
OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
K18022 Dial Thermometer
K18021 Overflow Ring
K18020 Steel Grease Worker - Complete per ASTM specifications. Consists of cup, cover, plunger and vent cock.
K18030 Steel Grease Worker - Similar to K18020 above
K18028 Cover Assembly - Replacement cover assembly
K18029 Grease Cup
K18023 Blank Lid, with seal for ASTM Steel Grease Worker. Use when heating samples prior to test.
