Koehler Instrument K26150 Pressure Hydrometer

Product Description
Density and relative density measurements of light hydrocarbons, including Liquified Petroleum Gas (LPG), are used for transportation, storage and regulatory purposes. The measurement is made by floating a thermohydrometer in a sample that has been introduced into a pressure cylinder.

Features and Benefits:
~ Built-in safety relief valve
~ Safety relief valve: 200psi (1.4MPa)

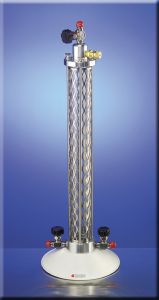

Transparent plastic cylinder mounted between machined aluminum end plates and surrounded by stainless steel safety guard. Use together with ASTM 310H Thermohydrometer to determine density or relative density of LPG and light hydrocarbons. Equipped with inlet, outlet and vapor vent valves for admitting sample and purging cylinder. End plates have positive sealing buna-N O-rings and are joined by sturdy steel support rods. Top plate detaches easily without tools for insertion or removal of thermohydrometer. Safety relief valve prevents unsafe pressure build-up inside cylinder. Mounted on a finished steel base.
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K26150 Pressure Hydrometer or copy the following into your browser address window: labequip.ca/stock/pictures/n1186.pdf
Made in USA.

ACCESSORIES:

OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
K26150 Pressure Hydrometer Cylinder
251-000-001 ASTM 101H Thermohydrometer
Nominal Relative Density Range: 0.500 to 0.650
Standard Temperature, °F: 60/60
Temperature Range, °F: 30 to 90
251-000-004 ASTM 310H Thermohydrometer
Density Range kg/m3: 500-650
Standard Temperature, °C: 15
Temperature Range, °C: 0 to 35
250-000-12F ASTM 12F Thermometer.Range -5 to +215°F
250-000-12C ASTM 12C Thermometer.Range -20 to +102°C

---
