Product Description

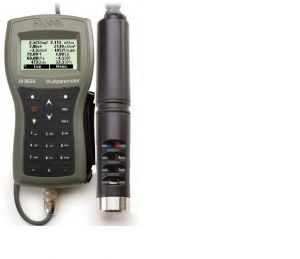

HANNAs HI 9829 is a Multiparameter Meter for measuring pH/ORP/ISE, EC/TDS/Resistivity/Salinity/Seawater Specific Gravity, Turbidity, DO, Temperature and Atmospheric Pressure. It is priced to include probes to measure pH, DO, ORP and conductivity and the temperature sensor.. For other parameters, please inquire for additional cost.
~ Field replaceable ISO 7027 compliant turbidity sensor
~ Ammonium, chloride and nitrate ISE's
~ Logging from probe or meter
~ Fully customizable instrument, probe, sensors and measurement specifications
~ Display from 1 to 12 parameters with font dimension adjustment
~ Field replaceable sensors
~ pH/ORP or pH, four electrode EC and galvanic DO sensors
~ Auto-recognition of all sensors
~ Rugged probe with stainless steel tip has a diameter under 2 in. for wells and pipes
~ Fast Tracker_Tag I.D. System simplifies periodic monitoring
~ Features a built-in barometer for DO compensation
~ Quick or independent sensor calibration feature
~ Measurement check eliminates erroneous readings
~ Logged data can be displayed as graphs
~ Graphic LCD with backlight
~ USB for PC connectivity
~ Good Laboratory Practice feature with last five calibrations recorded
~ Meter accepts both alkaline and rechargeable batteries
~ Waterproof protection for meter (IP67) and probes (IP 68)
Rugged, waterproof and easy to use, the HI 9829 is the ideal meters for field measurements of lakes, rivers and seas. Both meters display 1 to 12 parameters simultaneously from up to 15 user selectable parameters.
Combined with one of the HI 76x9829 series probes, the HI 9829 can measure water quality parameters such as pH, ORP, conductivity, turbidity, temperature, ions ions ammonium, nitrate, chloride (NH4+, NO3-_N or Cl-), dissolved oxygen concentration, resistivity, TDS, salinity, and seawater specific gravity. Atmospheric pressure is measured for DO compensation.
This meter features a graphic, backlit LCD that scales digits to fit up to 12 parameters and allows full configuration of each parameter measured along with an on-screen graphing capability.
HI 9829 incorporates comprehensive GLP features and the transferring of data via USB connection. The HI 98290's HELP key displays context sensitive help. The alpha-numeric keypad offers a user friendly way to complete the input fields.
Specifications:
SEE ATTACHED BROCHURE FOR ALL SPECIFICATIONS (Page 7)
The Perfect Monitoring Tool
Water scientists and managers alike utilize data-collection programs as part of environmental monitoring. These programs are designed to reveal changes in water and the environment around it over time. Reliable, dependable measurements are required to monitor these changes and understand the contributions from seasonal fluctuations, weathering, as well as manmade pollution. The HI 7629829 or HI 7639829 intelligent autonomously logging probes can be left at the application site to autonomously log results without the aid of the HI 9829 or a PC. When it is time to retrieve the results the measurement data can be easily transferred to the meters or PC using HI 929829 software.
SENSORS:
Sensor replacement is quick and easy with screw type connectors and color coded sensors. The HI 9829 automatically recognizes sensor presence.
~ The HI 7609829-2 galvanic DO sensor with its fast response time can be ready at a moment's notice. This probe features a replaceable membrane cap for easy maintenance.
~ The HI 7609829-3 4-electrode conductivity probe uses a polarographic measurement principle and ensures stable conductivity readings that are immune to polarization or surface coating. Absolute conductivity, temperature compensated conductivity, salinity, specific gravity and TDS determinations are possible with measurements from this sensor.
~ The new HI 7609829-4 EC/turbidity sensor is field replaceable and offers readings from both parameters at the same time.
All potentiometric sensors feature a double junction design and are gel filled to increase resistance to contamination. An ISE sensor can be used in place of the pH sensor and is automatically recognized. pH in mV readings are also displayed, which is ideal for troubleshooting.
The use of HANNA's microprocessor based multiparameter intelligent probes with HI 9829 meter will provide reliable data collection that can lead to an improved scientific understanding of the interconnections between natural, chemical and geological processes and man made pollution to effectively evaluate applications for waste-discharge permits, remediate contaminated sites and to protect or restore biological resources.
The HI 76x9829 probes utilize field replaceable sensors with auto-recognition. The sensors are housed with the probe electronics in a rugged housing with a water-tight cable connection. The base probe model permits the measurement of conductivity, pH/ORP (or an ISE), and dissolved oxygen. Other models permit turbidity and logging.
The probes are available with a choice of cable lengths such as 4 m and 10 m and 20 m (13, 33') that utilize a DIN connection to interface with the meters. The probes are supplied with a maintenance kit in the carrying case versions. These new probes can be connected directly to a PC with the HI 96982910 USB adapter, and the HI 929829 PC software to communicate directly with the probes.
Reliable temperature measurements are a critical parameter of aquatic system monitoring. Temperature and temperature changes due to water releases can affect the ability of water to hold oxygen as well as the ability of organisms to resist certain pollutants. The intelligent probes incorporate an accurate thermistor that changes predictably with temperature changes. Accurate temperature reading in degrees Celsius, Kelvin or Fahrenheit are displayed and utilized by other detectors for temperature correction.
The pH or pH/ORP sensors incorporate the technology that has made HANNA so successful as a pH manufacturer. Reliable pH measurements are one of the most important indicators of water chemistry indicating the relative amount of free hydrogen and hydroxyl ions in the water. HANNA's pH sensors utilize a resilient PEI body to protect them from solid particulates found water samples. Consistency and quality are the hallmarks of these sensors. Our differential measurement system further enhances the measurement reliability providing temperature corrected pH.
A choice of 3 ion selective electrodes is available for constant reporting of common surface water contaminants. Nitrate, ammonium and chloride are available. Each ISE is a combination electrode incorporating an extremely constant reference spiral; all potentionmetric probes feature a double junction and solid gelled reference design. By utilizing conductivity, the HI 9829 can convert ion activity measurements to concentration units.
The HANNA 4-electrode conductivity probe using the polarographic measurement principal ensures stable conductivity readings. Electrolytic conductivity measures of the ability of water to conduct an electrical current. It is highly dependent on the amount of dissolved solids (such as salt) in the water. Absolute conductivity, temperature corrected conductivity, salinity, specific gravity and water hardness (TDS) determinations are possible with measurements from this sensor.
The oxygen dissolved in lakes, rivers, and oceans is crucial for the organisms and creatures living in it. If dissolved oxygen concentrations drop below normal levels in water bodies, the water quality degrades and the organisms begin to die off. The galvanic sensor does not require long polarization times so is ready for measurement at a moment's notice. Our sensor also utilizes a replaceable cap design for ease of maintenance and a safe non-toxic electrolyte. DO readings are compensated for the effects of temperature (using the probes built-in temperature sensor) and atmospheric pressure (using the HI 9829's internal atmospheric pressure sensor).
The new HANNA turbidity sensor is a replaceable design for instantaneous turbidity reading that conforms to ISO 7027 standards. It provides measurements from 0.0 to 50.0 FNU; and 50 to 1000 FNU. Turbidity is the amount of particulate matter that is suspended in water. Turbidity measures the scattering effect that suspended solids have on light: the higher the intensity of scattered light, the higher the turbidity. Material that causes water to be turbid include: clay, silt, finely divided organic and inorganic matter, soluble colored organic compounds, plankton and microscopic organisms.
Probes with the logging function have a logging memory that allows storage of up to 140,000 individual samples or 12,000 complete sample data sets with date and time stamp thus permitting up to a 35 day deployment with all channels logging at 10 minute intervals. Logging probes work with either rechargeable or standard batteries
The probe incorporates a temperature sensor for temperature compensation of all parameters.
Monitoring and Tracking
When data collection or monitoring requires tracking capabilities, two kinds of methods can be included with the data_timestamp and location. The timestamp expresses the date and the time when the measurement was taken. The time and date (timestamp) are determined by the internal real time clock of the HI 9829. As for location of measurement, the HI 9829 offers the FastTracker Tag ID system using ID encoded TAGs mounted at the location sites. Users simply touch the TAG receiver to the mounted TAG to store data along with location ID.
Fast Tracker_Tag Identification System:
HANNA's Fact Tracker_Tag Identification System simplifies test logging. iButtons with a unique ID can be installed at various sampling sites. When the matching connector on the meter contacts the location button, measurements are logged and labeled with the alphanumeric user-entered location ID. Location, date, time and measurements are logged into the meter which can be transferred to a PC. The Fast TrackerÖ system complements the GPS for ultimate tracking.
iButton Tags are Easy to Install
Install the optional TAGs near your sampling points for quick and easy iButton readings. Each TAG contains a computer chip with a unique identification code encased in stainless steel. You can install a practically unlimited amount of TAGs. Additional TAGs can be ordered for all of your traceability requirements.
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Hanna HI 9829C4 Digital Portable pH-Multiparameter Meter or copy the following into your browser address window: labequip.ca/stock/pictures/n1157.pdf
ACCESSORIES:
COMES COMPLETE WITH:
multisensor probe
HI 9828-25 quick calibration standard solution (500 mL)
probe maintenance kit
rechargeable Ni-MH batteries (4)
power adapter & cable
car 12 V accessory outlet adapter
HI 7698281 USB interface cable
HI 929829 Windows compatible software
instruction manual
rugged carrying case
OPTIONAL ACCESSORIES AVAIABLE AT ADDITIONAL COST:
various probes
Probe maintenance kit
quick calibration solutions
various buffers
ORP solutions
conduictivity standard solutions
pH/ORP maintenance solutions
DO solutions
turbidity solutions
ISE solutions
electrode storage solutions
electrode and probe cleaning solutions
electrode refill electrolyte solutions
