Product Description

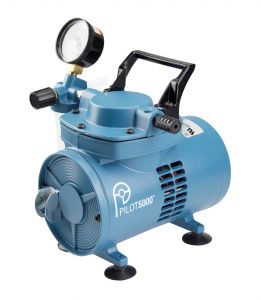

Model PILOT5000 diaphragm vacuum pump is durable and chemical resistant. All contact surfaces are PTFE coated. It comes with a liquid inlet trap and vacuum regulator making it a perfect choice for vacuum filtration, desiccation, and other mid-range vacuum applications. The TLD5000 is also bleach resistant, allowing them to be used with cell culture decontamination protocols.
The PILOT5000 has free air displacement of 1.3CFM (37LPM) at60Hz
The PILOT5000C-02 has free air displacement of 1.1CFM (31LPM) at 50Hz
They are recommended for operations utilizing organic/aqueous solvents and/or light acid/base solutions.
The pump can also be used to pressurize up to 18 PSIG and comes with 115V line cord, plug, and convenient power switch.
Resistant to bleach and acetone vapors allowing it to be used with cell culture decontamination protocols.
Features
~ Made in the USA
~ PTFE contact surfaces
~ Bleach safe for cell culture bio decontamination protocols
~ Vacuum to 24 in. Hg
~ Flow of 37 lpm
~ Liquid inlet trap with ball check valve
~ Vacuum regulator
~ Exhaust muffler
~ Compact, portable
~ Quiet
~ Diaphragm membrane rated for 15,000 hours use
APPLICATIONS:
Vacuum filtration
Solid phase extraction
Desiccation
Microbiology
Replace water aspirator
Aspiration
Degassing
Vacuum drying
Fume suction
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Fischer Pilot 5000 Diaphragm-type Vacuum Pump or copy the following into your browser address window: labequip.ca/stock/pictures/n1872.pdf
Made in USA.
