BYK-Gardner spectro2go 45/0 (7085) Color Spectrophotometer

Product Description
Controlling color harmony of multi-component products within a global supply chain is a challenge. The outstanding technical performance of the spectro2go allows the use of digital standards. Thus, everybody aims for the same target. Small parts can easily stand out like a thorn in the side, if their color does not match the other components. The new spectro2go XS with small aperture is especially developed for measurement of small parts.
- Color and 60° gloss measurement in one
- Exchange of digital standards due to excellent inter-instrument agreement
- Balanced and upfront design with large color touchscreen
- External checking and calibration standards
- Live preview of the measurement spot with integrated camera
- Smart high-tech LED illumination for excellent short-term, long-term and temperature stability
- 10 year warranty on LED light source - no lamp change needed
- Professional data analysis with smart-chart combined with WiFi or USB data transfer

SPECIFICATIONS:
Measuring Capability: Color, Gloss

COLOR MEASUREMENT
Color Geometry: 45°c:0°
Sample Port: 12 mm
Measuring Area: 08 mm
Spectral Range Colorimetric: 400 - 700 nm, 10 nm resolution
Measurement Range: 0 - 170% remission
Repeatability Color: 0.01 dE94 (10 consecutive measurements on white)
Reproducibility Color: 0.1 dE94 (average of 12 BCRA II tiles)
Color Systems: CIELab/Ch, Lab(h), XYZ; Yxy
Color Differences: dE*; dE(h); dECMC; dE94; dE99; dE2000; E2000 PF; dE DIN6175-2019
Color Indices: YIE313, YID1925, WIE313, CIE, Berger, Color Strength, Opacity, Metamerism, Grayscale
Illuminants: A, C, D50, D55, D65, D75, F2, F6, F7, F8, F10, F11, UL30, CIE 015:2018 LED Illuminants
Observer: 2°, 10°

GLOSS MEASUREMENT
Repeatability Gloss 0-20: ± 0.1 GU
Repeatability Gloss 20-100: ± 0.2 GU
Reproducibility Gloss 0-20: ± 0.5 GU
Reproducibility Gloss 20-100: ± 1.0 GU
Gloss Geometry: 60°
Gloss Aperture: 5 x 10 mm
Measurement Range Gloss: 0 - 100 GU

GENERAL
Memory: 4.000 Standards and 10.000 Samples
Interface: USB port
Display: 3.5 " Color Touchscreen
Languages: English German French Italian Spanish Russian Japanese Chinese
Power supply: Internal rechargeable battery
Power supply: 100 - 240 V, 50/60 Hz
Battery: 7.2 V, 2350 mAh, 16.92 Wh
Battery Capacity: 1200 readings

Online web training may be available for purchasers outside North America.
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
BYK-Gardner spectro2go 45/0 (7085) Color Spectrophotometer or copy the following into your browser address window: labequip.ca/stock/pictures/n2339.pdf
Made in Germany.

ACCESSORIES:

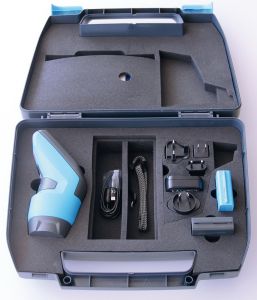

COMES COMPLETE WITH:
Spectrophotometer
White calibration standard
Color and gloss checking standard
Certificate
Software with two licensees for download:
smart-lab Color (7083) or smart-process Color (7084)
USB online cable type C/A for data transfer (7078)
External power supply (type A/C/G/I) (7305)
Stylus (7079)
Protective cap (7076), hand strap
Manual
Carrying case
1-day training (North America)

OPTIONAL ACCESSORIES AVAIABLE AT ADDITIONAL COST:
Adapter Rings
Lipstick Kit
Nail Kit
Nail Attachment
Cylinder Kit
Wet Drawdown Template - C2
Sample Holder Round Dish - C2
Sample Holder Cosmetics
Positioning Adapter for spectro2
Protective Cap, spectro2guide
USB Interface Cable, spectro2guide
Online Cable for spectro2 and 7300
Stylus, spectro2guide
Docking station for spectro2guide
smart-lab Color
smart-process Color

---
