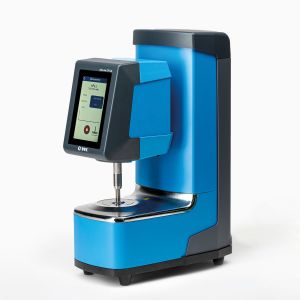

BYK-Gardner byko-visc CP Lite L or H Digital Cone and Plate Viscometer

Product Description
The byko-visc CP Cone and Plate viscometer allows for the precise determination of the absolute viscosity of materials using minimal sample sizes. With built-in temperature control and constant shear rates throughout the whole sample it can measure and predict the performance of your samples closer to the conditions in your manufacturing or application process (E.g. Spreading of paint on a wall or flowing of a polymer melt inside a pipe). The byko-visc CP combines the ability to measure low shear applications such as automotive clear coats and high shear applications such as wall paints in one instrument without a loss in accuracy. The desired viscosity ranges can be customized according to different use cases by a selection of ten (separately available) cones. The byko-visc CP Cone and Plate viscometer offers a practical solution for any QC or R&D lab requiring quick, easy and reliable testing of the behaviour of a liquid under different conditions.

FEATURES:
Determine the absolute viscosity of an analyte
Small (<2 mL) sample sizes save both material and time required to clean instrument
Precise shear rates from a robust direct drive motor design make it ideal for non-Newtonian samples
Built in temperature control - No additional thermal systems needed
Excellent accuracy and repeatability
Brilliant 5" color touch display
Test modes: Time to torque, Time to stop, QC limits
Automatic electronic cone lift
Bayonet coupling for easy cone attachment
Dymo label writer output for sample labeling
Cones made of high-quality 316 stainless steel

Ideal for non-Newtonian samples
Ideal to guarantee stable room temperature even in hot climates (low temp model)
Ideal for polymer melts (high temp model)
On-Screen data charts & graph
Improved data analysis, ramp of speeds & curve fitting modes
Measurement features: Time to Stop, Multi-step Ramp, QC Limits, Curve Fitting, Multi-point Tests

SPECIFICATIONS:
Temperature Range Low Temp model: 5-75°C (41-167°F)
Temperature Range High Temp model: 50-235°C (122-455°F)
Measuring Range: 20-75.000 cP
No. of Spindles available: 10 (not included)
No. of Speeds: 4 Speeds: 100, 400, 750 & 900 rpm
Speed Range: 100 - 900 rpm
Speeds: variable
Shear Rate: 200-12,000 1/sec
Repeatability: 0.2%
Accuracy: ±2.0% of full scale
Preset memory: 6 memory locations for measurement settings presets
Model Type: Low Temperature or High temperature
Interface: 2x USB Type A, 1x USB Type C, 1x Ethernet
Languages: Chinese English French German Italian Japanese Spanish Portuguese
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
BYK-Gardner byko-visc CP Lite L or H Digital Cone and Plate Viscometer or copy the following into your browser address window: labequip.ca/stock/pictures/n2367.pdf

MANUFACTURED IN USA.

This item ships from United States.

ACCESSORIES:

COMES COMPLETE WITH:
Viscometer
Power Supply
Calibration Certificate

OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
Cones
Various viscosity standards

---
