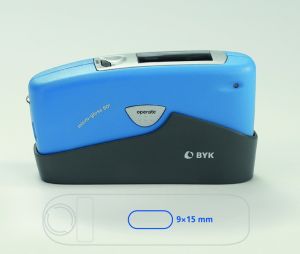

BYK-Gardner Micro-Gloss 60 (4561) 60-degree Gloss Meter

Product Description
60° measurement is for semi-gloss paint and plastic - with the micro-gloss gloss meter you can measure any material - paints, plastics or highly reflective or mirror-like metals. All angles measure at the same location, and the results appear simultaneously - including Statistics, Difference, or Pass/Fail (ideal for QC and checks in the field)

NEW: smart-chart software - instant QC reports with trend graph and Pass/Fail limits

~ Brilliant color display: easy to read - easy to use. The scroll wheel operation and new color display with an easy-to-navigate menu make gloss measurement easier than ever before.
~ Accurate readings require reliable calibration. The gloss meter and calibration holder make a perfect couple - the calibration standard is always protected in the holder of the micro-gloss. The intelligent auto diagnosis of the gloss meter is a unique feature which guarantees long-term calibration stability and tells you when to calibrate. It even checks whether the standard is clean. Operator-friendly and safe.
~ With the micro-gloss gloss meter you can measure any material - paints, plastics or brightened metals. Its expanded range measures from very matte to mirror like reflection of up to 2000 gloss units, automatically and without additional calibration.
Always reliable results - according to international standards Every measurement series can be saved in the glossmeter under its own name.

Different tasks require different tools. The easy to turn scroll wheel of the glossmeter quickly shows you all needed functions - even without a PC:
The BASIC MODE is your tool to quickly check the gloss of a few samples.
The STATISTIC MODE not only shows the average, but all statistical data needed to judge whether the measured difference is significant or how uniform the surface gloss is on your sample. You define what you want to see: mean, standard deviation, range, min/max, ...
The DIFFERENCE MODE allows you to define a reference with Pass/Fail limits and will compare all of the following measurements to the selected reference. The Pass/ Fail indication is colorfully shown on the high resolution display - ideal for production control.
The CONTINUOUS MODE is the most efficient way to quickly check the uniformity of a large sample surface. You define the measurement interval and are now ready to continuously measure the gloss by sliding the micro-gloss over the surface. When finished, the average with min - max range are displayed.

Geometry __ 60°
Application __ semi-gloss
Measurement Area __ 9x15 mm (0.35 x 0.6 in.)

SPECIFICATIONS:
~ Measurement range: 1 0 - 100 GU / 100 - 2000 GU
~ Repeatability: ±0.2 GU / ±0.2 %
~ Reproducibility: ±0.5 GU / ±0.5 %
~ Spectral sensitivity: CIE standard observer for illuminant CIE-C
~ Measuring time: 0.5 seconds / geometry
~ Thickness:
~ Substrate - Fe: magnetic, NFe: non-magnetic
~ Measurement Range: 0 - 500Mm (0 - 20 mils)
~ Accuracy: ±(1.5Mm +2% of measured value)
~ Memory: 999 readings with date and time
~ Interface: USB
~ Power supply: one 1.5V AA Alkaline Battery 4,000 readings or via USB-port

Note: After software download, both software packages can be used for 30 day free trial. Thereafter, the user needs to decide and register for one software package.

System Requirements:
~ Operating system: Windows® 7 SP1 or 8.1
~ Microsoft® . NET Framework 4
~ Hardware: Core 2 Duo, 2.2 GHz, i7 recommended or equivalent
~ Memory: 4 GB RAM, 8 GB recommended
~ Hard-disc capacity: min. 300 MB
~ Monitor resolution: 1280 x 1024 pixel or higher
~ Interface: free USB-port
_
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
BYK Micro-Gloss 60 (4561) 60-degree Gloss Meter or copy the following into your browser address window: labequip.ca/stock/pictures/n1542.pdf
Made in Germany.

ACCESSORIES:

COMES COMPLETE WITH:
Glossmeter
Calibration holder 60° (4443)
USB-cable micro-gloss (4405)
Software with 2 licenses for download:
smart-lab Gloss (4866) or smart-process Gloss (4867)
Battery
Traceable certificate
Manual
Carrying case

OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
4405 USB-Cable micro-gloss
4439 Wet Drawdown Template - G
4443 Calibration Holder 60°
4453 Sample Holder Round Dish-G
4462 Checking Standard micro-gloss 60°
4866 smart-lab Gloss
4867 smart-process Gloss
6416 Adapter Rings for 4453, 6415, 6468, 6806
6464 Cylinder Kit
6469 Sample Holder Cosmetics

---
