Product Description

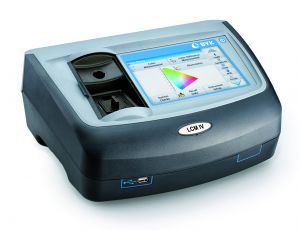

The LCM IV is a reliable color instrument which replaces conventional visual color evaluation with an objective measurement. It is ideal for routine production control of clear, transparent liquids like resins, adhesives and solvents.
~ Large 7¨ touch-screen display with intuitive user guidance for simple operation
~ Automatic cuvette detection - avoids faulty data measurement
~ Works with 10 and 50 mm rectangle as well as 11 mm round cuvettes for optimum precision
~ Easy to exchange rectangular cell compartment
~ Gardner, Hazen (APHA/PtCo), Iodine, Saybolt and Mineral Oil scales come standard with instrument
~ Reference beam design to maximize the accuracy and precision
~ Front USB interface for PC or printer connection
~ Easy data transfer into existing networks through integrated Ethernet (LAN) interface
SPECIFICATIONS:
Type : Single-beam photometer with reference beam path
Spectral Range: 380 to 720; 10 nm resolution
Repeatability: ±2 Hazen; ± 0.1 Gardner
Reproducibility: ±0.3 Iodine, ±5 Hazen, ±0.3 Gardner
Light Source: Tungsten Halogen Lamp
Indices: Hazen/APHA (0 - 1000); Gardner (0 - 18); Iodine (0 - 120); Saybolt (-16-30); Mineral oil (ASTM D 1500) 0 - 8
Memory: 400 color measurements
Data Export: *.csv file to USB memory stick or Ethernet
Interface: 2x USB Type A; 1x USB Type B; 1x Ethernet
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
BYK LCM IV (9561) Color Spectrophotometer or copy the following into your browser address window: labequip.ca/stock/pictures/n940.pdf
Made in Germany.
ACCESSORIES:
COMES COMPLETE WITH:
Instrument with dust cover
External power supply
Adapter for 10 mm rectangle cuvettes
addista - color standards (9532)
Single use plastic cuvettes (10 x 50 mm)- 10 pieces (9555)
Single use glass cuvettes (11 mm) - 10 pieces
Manual
OPTIONAL ACCESSORIES AVAIABLE AT ADDITIONAL COST:
P-Glass Cuvette, 11 mm
D-Glass Cuvette, 11 mm, open
D-Plastic Cuvette, open
P-Glass Cuvette, 10 x 10
P-Glass Cuvette, 10 x 50
Thermostat Heater Block
Certified set of 6 standard liquids
addista - color standards
Rack 16, cylindrical - square
D-Plastic Cuvette, plastic top
D-Glass Cuvette 11, screw top
Rubber Stopper for 6453
Rack 7, rectangle
Thermo Printer, 115V
Thermo Printer, 230V
Halogen Lamp, LCM/LCS III - IV
Power Supply, LCM/LCS III
Li-Ion Battery , LCM III
Verification Kit, LCM III - IV
