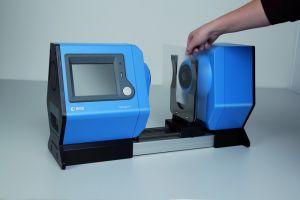

BYK-Gardner Haze-Gard i (4775) Haze Meter

Product Description
Transparent products can have a milky or fuzzy appearance dependent on its light scattering behavior. The haze-gard i quantifies the visual perception with objective measurement criteria:
~ Total transmittance
~ Transmission haze
~ Clarity
haze-gard i controls complete transparency by taking only one reading. At additional cost, you can purchase easily replaced holders for different applications and a special holder for very thin films. The measurement of haze is used to determine abrasion resistance of transparent materials. The haze-gard i Abrasion Holder (additional cost) facilitates positioning of the abraded area in the measurement beam. Liquids are best measured using cuvettes and the cuvette table, also available at additional cost.

Haze and transmittance control according to international standard methods with one unit:
ASTM D1003 - illuminants C and A non-compensated method
ISO 13468 - illuminant D65 Compensated method

haze-gard i displays all results simultaneously - well prepared for any customer specification.

With state-of-the-art optics and LED technology the haze-gard i delivers an unprecedented performance:
Reference beam, self-diagnosis and enclosed optics.
LED light source assures long-term stable results for many years: 10 year warranty on the lamp life !
Automatic, long-term calibration - operator friendly and safe.
Superior repeatability and inter-instrument agreement are guaranteed

The new touch display is designed to be intuitive and easy to use for any task. The open measurement compartment lets you work freely to analyze any sample size. Horizontal or vertical set-up - Sample handling in any position is convenient and allows you highest flexibility. Measurement data can be analyzed and saved in projects directly in the haze-gard i for efficient work management: Large instrument memory (5000 readings). Complete statistics with averaging, min / max, standard deviation. Data transfer can be performed in all sorts of ways to support you in routine lab work.

Whatever the task, smart-lab haze data analysis software will do it for you. From simple data tables of single test series to trend reports over time - anything is possible.

SPECIFICATIONS:
Illuminants CIE-C, CIE-A (ASTM D1003)
CIE-D65 (ISO 13468, ISO 14782)
Spectral Response CIE luminosity function y
Geometry 0° / diffuse
Measurement Area ø 18 mm (0.7 in)
Sample Port ø 25.4 mm (1.0 in)
Measurement Range 0 - 100 %
Repeatability ± 0.1 units (standard deviation)
Reproducibility ± 0.4 units (standard deviation)
Memory 5000 readings
Interface
LAN, USB 2.0, additional front USB port for memory stick
Power Supply 115/230V self-adapting
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
BYK Haze-Gard i (4775) Haze Meter or copy the following into your browser address window: labequip.ca/stock/pictures/n1279.pdf
Made in Germany.

ACCESSORIES:

COMES COMPLETE WITH:
Instrument
Guide carriage for sample holders
Clarity calibration standard (4776)
Foot switch
Power cord
USB-cable
LAN-cable
smart-lab Haze software with 2 licenses for download (4865)
Traceable certificate
Manual
Half day training

OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
4748 Haze aperture 4mm
4774 Haze Aperture 15mm
4776 Clarity Calibration Standard, for 4775
4777 Clarity Reference Standard, for 4775
4778 Transmittance Standard 10, for 4775
4779 Transmittance Standard 30, for 4775
4780 Transmittance Standard 50, for 4775
4781 Transmittance Standard 70, for 4775
4782 Transmittance Standard 90, for 4775
4783 Transmittance Standard Set, for 4775
4784 Thin Film Holder, for 4775
4785 Taber Abrasion Holder, for 4775
4786 Cuvette Table, for 4775
4788 Sample Holder, for 4775
4790 Haze Standard 1, for 4775
4791 Haze Standard 5, for 4775
4792 Haze Standard 10, for 4775
4793 Haze Standard 20, for 4775
4794 Haze Standard 30, for 4775
4795 Haze Standard Set, for 4775
4865 smart-lab Haze
6180 Cuvette for Liquids, 2.5 mm
6182 Cuvette for Liquids, 5 mm
6183 Cuvette for Liquids, 10 mm
6189 Cuvette for Liquids, 20 mm

---
