Product Description

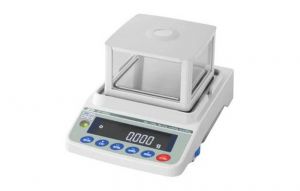

The GF-1003A bundles precision, protection and good data management into one balance. Ideal when weighing sensitive materials in high-risk environments or weighing with automated devices.
Enabled by the Smart Super Hybrid Sensor (SHS) technology for superior accuracy. Features Impact Shock Detection, Flow Rate Display and Electronically Controlled Load (ECL). This unique combination of features enhances precision, reducing the amount of rework required and lowering costs.
GF-1003A is constructed in durable die-cast aluminum with a stainless steel weighing pan. GLP/GMP/GCP compliant with full calibration reports. Password-Protect offers password-protection up to 11 users and 1 administrator.
SPECIFICATIONS:
Capacity: 1100g
Readability: 0.001g
Repeatability: 0.001g
Linearity: ±0.003g
Calibration: External
Stabilization Time: ~1s (~0.8s / 5 g)
Applications: Counting with ACAI, % Weighing, Animal Weighing, Density Determination, Statistical Calculation, Comparator HI/OK/LO with buzzer, Underhook, Gross/Net/Tare
Weighing Units: g, oz, lb, lb-oz, ozt, ct, mom, dwt, gr, pcs, %, SG, user-programmable unit
Connectivity: RS-232C and USB
Impact Shock Detection:
~ Impact-Alert - displays the magnitude of impact shocks to the weight sensor at four levels, with audible notification for higher levels of impact which should be avoided
~ Shock-log that records time, date, shock level and operator ID, making quality control easier to pinpoint.
~ Real-time feedback mechanism prevents equipment damage, and allows managers to modify in-line or manual processes alike. An important feature when transverse and vertical environment forces are unpredictable.
Electronically Controlled Load:
~ Allows the user to perform a diagnostic check and repeatability test without the need of an external test weight
~ At the touch of a button and in under two minutes, users gain a daily precision verification test with Dia-Check.
~ Determine a standard deviation and calculate the minimum sample weight with Quick-MinS, and ensure operations are USP41 compliant with Min-S-Alert.
~ Ensures critical measurements are compliant with industry standards such as USP 41 and 1251.
Flow Rate Display:
~ Avoid irregularity that can arise in traditional filling and dosing applications, the Apollo series features an FRD function.
~ The FR-Calc feature calculates and displays the mass or volume flow rates to close the 'time-clock disparity' found with traditional PC methods.
~ FR-comparator, which allows monitoring of flow rate data to ensure it is kept within designated limits
~ Tare value can be saved in non-volatile memory so that the remaining amount of the material in the container can be displayed again, even if power is disrupted during loss-in-weighing measurement.
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
AND (A&D) GF-1003A 3-decimal Balance or copy the following into your browser address window: labequip.ca/stock/pictures/n776.pdf
Made in Japan.
ACCESSORIES:
OPTIONAL ACCESSORIES AT ADDITIONAL COST:
AD-1641 Air flow logger
AD-1682 Rechargeable battery unit
AD-1683 Static eliminator
AD-1684A Electrostatic field meter
AD-1687 Weighing environment logger
AD-1688 Weighing data logger
AD-1689 Tweezers for calibration weight
AD-1691 Weighing environment analyzer
AD-8127 Compact printer
AD-8526 Serial/Ethernet converter
AD-8920A Remote display
AD-8922A Remote controller
AX-GXA-31 Main unit cover (5 pcs)
AX-SW137-PRINT Foot switch for print
AX-SW137-REZERO Foot switch for re-zero
AX-USB-9P Serial/USB converter
AD-8529PC-W Bluetooth Converter for PC
AD-8529PR-W Bluetooth Converter for Printer
