Product Description

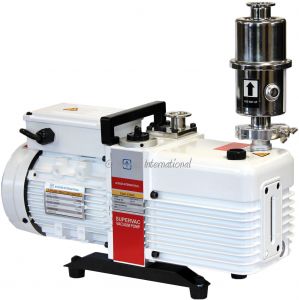

5.6cfm vacuum pump is corrosion resistant and 115V/230V 50/60Hz switchable!
This dual-stage vacuum pump will take your vacuum down to 0.3 micron in minutes. These pumps are designed for reliable long time continuous operation. Comes standard with all necessary fittings and a high capacity exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run.
Adjustable gas ballast is designed to allow purposefully pull a less deep and slower vacuum by opening the gas ballast, allowing dry air to go directly into the pump and diluting the vacuum pull, and it also helps keep moisture, solvent, and other contaminants from getting stuck in the pump, and instead passing through to the exhaust.
FEATURES:
~ New corrosion-resistant design for durable operation in various environment
~ Adjustable gas ballast
~ Built-in oil back-flow prevention check valve
~ Internal forced oil cycling system
~ Integrated cylinder structure
~ Exhaust filter with easy-to-change replaceable filter element
~ Heavy duty structure and designed for reliable long time operation
~ Low noise
~ All necessary fittings and filter included for immediate use
~ 2-year warranty
SPECIFICATIONS:
~ Pumping rate: 5.6 cfm
~ Ultimate vacuum without gas ballast: 0.3 micron/millitorr
~ Ultimate vacuum with gas ballast: 6 micron/millitorr
~ Inlet/outlet connection: KF25/NW25 flange
~ Oil volume: 1 liter / 1.06 quart
~ Motor rate: 1720 rpm
It is important to note that pumps should always be run in a well ventilated area.
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Across SuperVac SV5C Rotary Vane Vacuum Pump or copy the following into your browser address window: labequip.ca/stock/pictures/n1718.pdf
