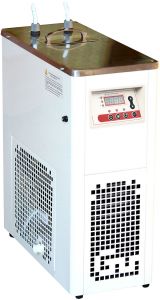

Product Description
The C15 series recirculating chillers are the true thermostatic control laboratory chiller, this closed laboratory chiller is ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Ai C15 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -15°C/5°F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
C15 circulating chiller features:
~ UL 61010-1 and CSA C22.2 certified in North America
~ No dry ice or liquid nitrogen needed
~ 360 degree rotating chilling fluid connectors
~ ANSI standard all stainless steel reservoir
~ All steel construction for durability
~ Small footprint saves valuable lab space
~ Cost saving as the water consumption is completely eliminated
~ Eco-friendly R404A refrigerant
~ Insulated tubing included
~ Recommended for 2L rotary evaporators
SPECIFICATIONS:
~ Temperature range: Ambient to -15°C (No load)
~ Compressor: Make: Embraco (Brazil) +
~ Number of compressor: one
~ Refrigerant: R404A (Eco-friendly)
~ Cooling capacity @0°C: 400W
~ Type: Centrifugal
~ Output: 15 watts
~ Power: 110V 50/60Hz 310mA 2650-3100 rpm
~ Pumping speed: 17 L/min or 4.5 gallon/min
~ Maximum head: 6.6 feet or 2 meter
~ Maximum pressure: 2.9 psi
~ Reservoir Dimensions: 5 x 11 x 5 in. (WxDxH)
~ Material: Type 304 stainless steel, polished
~ Chilling fluid connection: 3/8 in. hose barb x 2
~ Capacity: 3 liters or 0.8 gallons
Temperature controller
~ Type: Digital microprocessor PID controlled
~ Display unit: Celsius °C
~ Temperature accuracy: ±2°C
~ Temperature range: Ambient to -15°C
~ Temperature sensor type: Pt100
Recommended coolant
~ For 50°F/10°C or higher: distilled water
~ Between 50°F/10°C and 5°F/-15°C: 50% ethylene glycol + 50% distilled water
~ Built-in swivel casters: No
~ Safety: Compressor over-temp protection
~ Short circuit and ground protection
~ Over-current protection
~ Compressor delay start protection
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Across C15-3-2L Circulating Chiller / Cooler or copy the following into your browser address window: labequip.ca/stock/pictures/n1746.pdf
